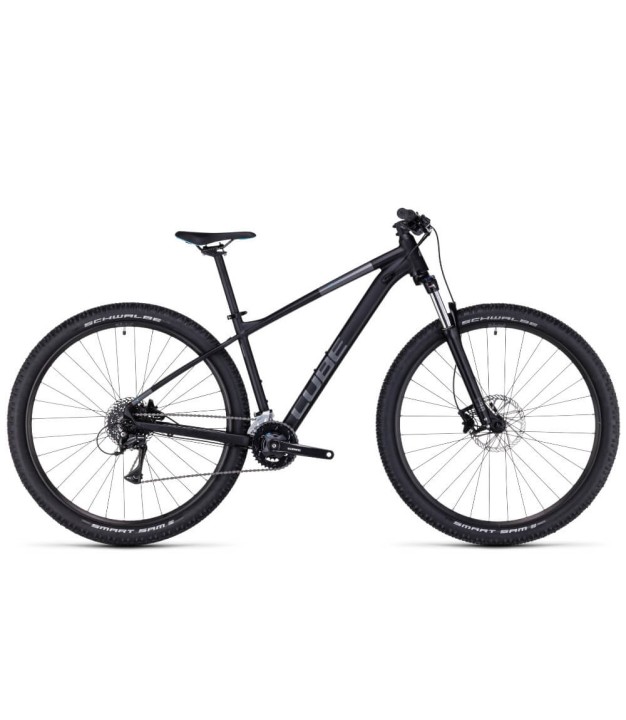

Cube Aim Race 27.5'' Mountain Bike, Black/Azure, 2023

Cube Aim Race 27.5'' Mountain Bike, Black/Azure, 2023

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

• SUSPENSION FORK: SR Suntour XCT Disc, 100mm, Lockout

• BRAKE SYSTEM: Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)

• REAR DERAILLEUR: Shimano RD-M3020, 8-Speed

• FRONT DERAILLEUR: Shimano FD-M315, Top Swing, 31.8mm Clamp

• SHIFTERS: Shimano SL-M315, Rapidfire-Plus

• BOTTOM BRACKET: Thun Paso-ML, 73mm BSA

• CRANKSET: Shimano FC-M315, 36x22T, 170mm

• CASSETTE: Shimano CS-HG31, 11-34T

• CHAIN: KMC Z8.3

• HANDLEBAR: CUBE Rise Trail Bar, 680mm

• STEM: CUBE Peformance Stem Race, 31.8mm

• GRIPS: ACID React

• HEADSET: CUBE FPH868, Semi-Integrated

• FRONT HUB: Shimano HB-TX505, QR, Centerlock

• REAR HUB: Shimano FH-TX505, QR, Centerlock

• RIMS: CUBE ZX20, 32H, Disc

• TYRES: Schwalbe Smart Sam, Active, 2.25

• SEAT POST: CUBE Performance Post, 27.2mm

• SADDLE: Natural Fit Venec Lite

• PEDALS: ACID PP MTB

• WEIGHT: 14,3 kg

GEOMETRY

ERGONOMICS

All values are given in millimetres or degrees.
